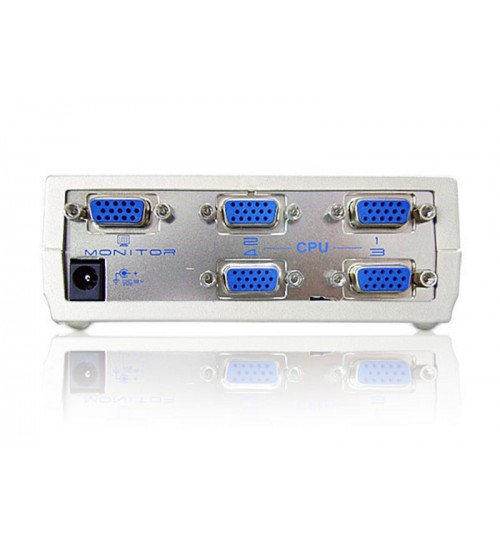

VS4914-Port Video Switch
VS491 is a video switch with 4 ports. It allows 4 independent computers to display their video outputs on a single monitor. Therefore, users will not need to buy monitors for each computer additionally.
| Video Input | |
| Interface | 4 x HDB-15 Female (Blue) |
| Impedance | 75 Ώ |
| Max. Distance | 1.8 m |
| Video Output | |
| Interface | 1 x HDB-15 Female (Blue) |
| Impedance | 75 Ώ |
| Max. Distance | 10 m |
| Video | |
| Max. Bandwidth | 150 MHz |
| Max. Resolution | Up to 1920 x 1440 |
| Max. Distance | Up to 10 m |
| Power | |
| Connectors | 1 x DC Jack |
| Consumption | 9 VDC, 1.35W |
| Environmental | |
| Operating Temperature | 0 - 50°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Plastic / Metal |
| Weight | 0.18 kg |
| Dimensions (L x W x H) | 12.00 x 6.52 x 4.40 cm |
| Carton Lot | 20 pcs |
